Kitchen & Bath Vents
Vents For Exhaust Fans
Lomanco® Kitchen & Bath Vents
The new Lomanco Bath PRO™ Roof vent solves your bathroom exhaust vent problems and is backed by Lomanco, the most trusted name in residential ventilation! Lomanco Kitchen & Bath vents are available in two sizes to fit all of your bathroom, kitchen, and other home exhaust vents. The Lomanco Bath PRO™ vent fits all 3″ and 4″ round ductwork. The Lomanco Kitchen PRO™ vent fits all 6″ to 8″ round ductwork and 3-1/4″x 10″ rectangular ductwork.
Common Features
Lomanco Kitchen & Bath vents are designed to provide a weather proof cover on your roof for exhaust ducts coming from home exhaust fan. Each vent offers maximum weather protection. All Lomanco Kitchen & Bath vents are galvanized steel construction with a black environmental epoxy finish that can be left as is or used as a primer for painting the vent a color of your choice. Other common features include a built in pest screen, aluminum draft damper, and an integrated flange
Easy Installation
Lomanco Kitchen & Bath vents offer fast and easy installation, and are designed to be installed on any roof pitch.

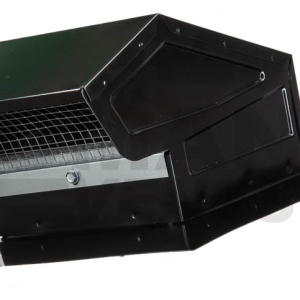

Lomanco® Bath PRO™ Model BRV34
- Use with 3″ or 4″ round ductwork.
- Galvanized steel construction with environmental epoxy finish.
- Built-in pest screen.
- Aluminum gravity draft damper flap.
- Integrated flange.
- Designed for fast and easy installation.
- Used to vent bath fans and other exhaust fans.*
Lomanco® Bath PRO™ Kit Model BRV34KIT
- Includes the Lomanco BRV34 Roof Jack above.
- 8 feet of 4″ diameter aluminum flexible ducting with two nylon hose tie clamps.
- Use with 3″ or 4″ exhaust fan outlet.
- Neoprene 3″ to 4″ duct adapter.
- 4″ duct connector provides quick and easy hose attachment to vent.
- Kit is designed for fast and easy installation.
- Used to vent bath fans and other exhaust fans.*
Lomanco® Kitchen PRO™ Model KV68
- Use with 6″ – 8″ round or 3-1/4″ x 10″ ductwork.
- Galvanized steel construction with environmental epoxy finish.
- Built-in pest screen.
- Aluminum draft damper.
- Integrated flange.
- Designed for fast and easy installation.
- Used to vent kitchen fans and other exhaust fans.*
* Do not use for clothes dryer exhaust. Consult building codes before installation.
| Model | Color | Overall Size (in) | Opening Size (in.) | Single CTN. WT. (lbs.) | CTN. QTY. | CTN. WT. (lbs.) |
|---|---|---|---|---|---|---|
| BRV34 | BL | 12 x 10 x 6 | 3 to 4 | 2 | 16 | 32 |
| BRV34KIT | BL | 12 x 10 x 6 | 3 to 4 | 3.5 | 1 | 3.5 |
| KV68 | BL | 14.188 x 18.75 x 6.5 | 6 to 8* | 5.15 | 1 | 5.2 |
| Lit# | Title | Product Line | Link |
|---|---|---|---|
| 412 | Bath PRO Roof Jack | Roof Jack | View |
| 413 | BathPRO Roof Jack Kit | Roof Jack | View |
| 414 | Kitchen PRO Roof Jack | Roof Jack | View |
| Model | Name | Title | Link |
|---|---|---|---|
| BRV34 | BATH PRO | Roof Jack for 3" & 4" Exhaust Fans | View |
| BRV34 KIT | BATH PRO KIT | Packaged Kit for BRV34 Roof Jack | View |
| KV68 | KITCHEN PRO | Roof Jack for 6"-8" & 3-1/4" x 10" Exhaust Fans | View |
